Gantry machining center

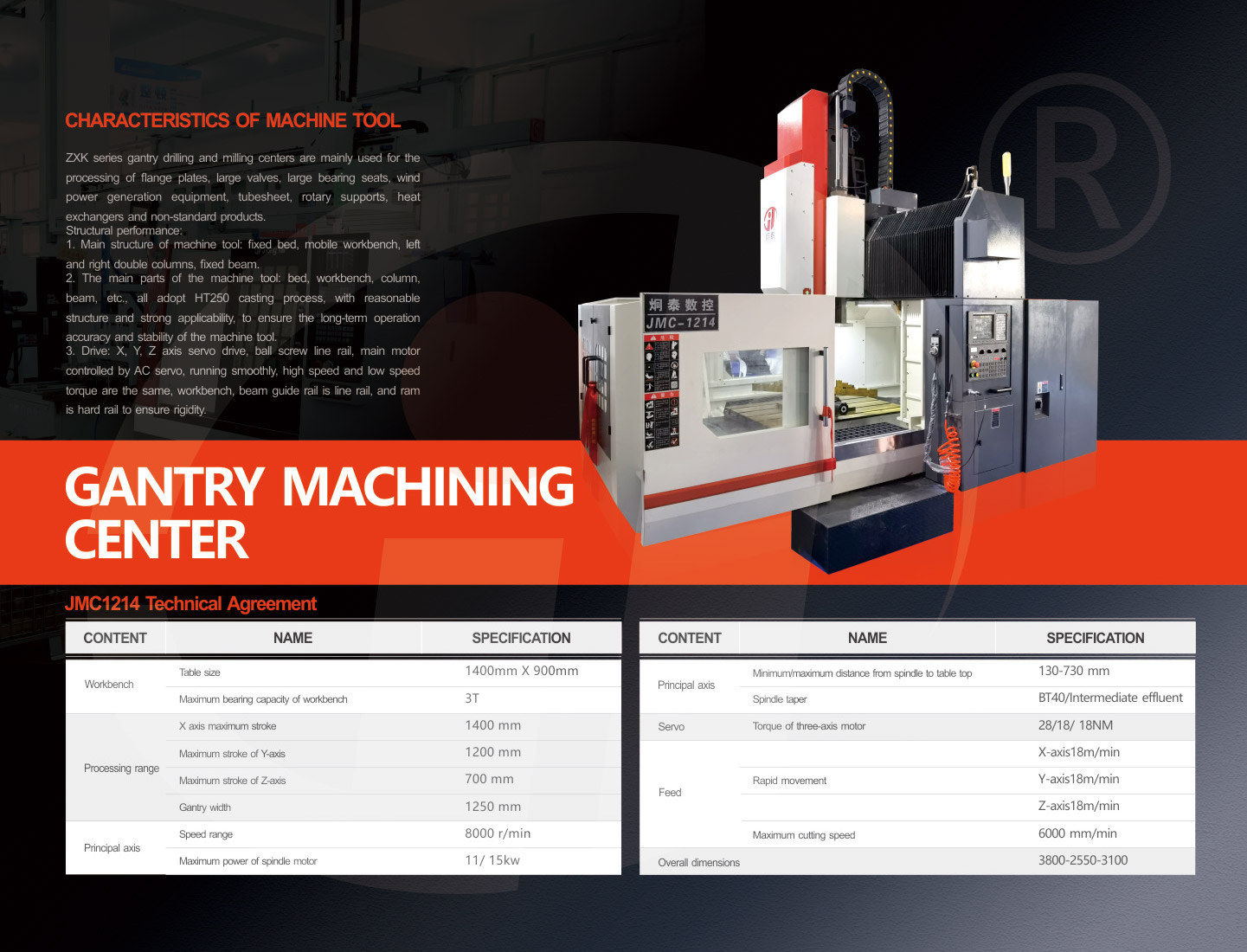

Machine tool characteristics ZXK series gantry drilling and milling center is mainly used for flange, large valve, large bearing seat, wind power equipment, tube plate, rotary support, heat exchanger and non-standard products processing. Structural performance 1, the main structure of the machine tool: fixed bed, mobile workbench, left and right double columns, fixed beam. 2, the main parts of the machine: bed, workbench, column, beam, etc., all using HT250 casting process, reasonable structure, strong applicability, to ensure the long-term operation accuracy and stability of the machine tool. 3, transmission: X, Y, Z axis servo drive, ball screw line rail, the main motor with AC servo control, smooth operation, high speed and low speed torque, workbench, beam guide rail for line rail, ram using hard rail to ensure rigidity.
